HIIGH SPEED CORRUGATOR BELT
Corrugated cardboard conveyor belts are used specially for corrugated cardboard production lines.After passing through a single-side corrugating machine,corrugating medium becomes corrugated under pressure and bonds together with the outer facing to constitute a single-side corrugated cardboard,which may be multiplied into three-layer,five layer or seven-layer corrugated cardboard after gluing.The conveyor belt,which is made of several types of synthetic fiber through fine knitting,shall be installed on top of the thermal plate and the cooling section.During operation,the conveyor belt shall endure high temperature,high pressure and strong friction in to ensure cardboard could be bonded accurately and dried in due time,thus providing a safe and reliable guarantee for the smooth operation of the corrugated cardboard production line.
HIIGH SPEED CORRUGATOR BELT LD-CW-01(Fast track cotton belt)
TECHNICAL PARAMETERS
Raw material:100% synthetic fiber
Thickness:8.5-9mm±0.3mm
Width:2200-3000mm
Temperature:a)Long time operation 160℃
b)Instantaneous operation 200℃
c)Melting point 254℃
Unit weight:7.3±0.3KG/㎡
Air permeability:2.6m³/㎡.min
Coefficient of Friction:≥0.43μ
Minimum Turning Radius:R70
Speed of conveyor application:300m/min

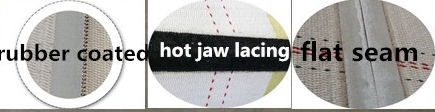

Seam: a)Hot Jaw Lacing
b)Rubber Coated
c)Flat seam
CHARCTERISTIC
Confirm to the production requirement of new corrugated paper production line
Ensure high speed
Low energy consumption
Package:
Wooden case or woven bag with pallet

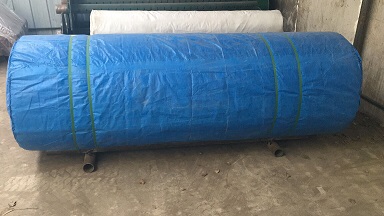

by air:

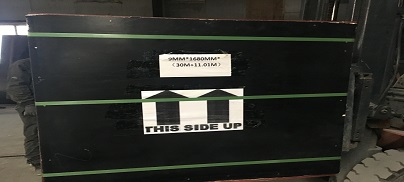

by sea:
