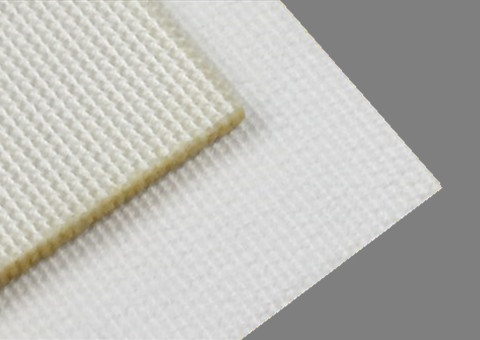

Polyester Air Slide Belt

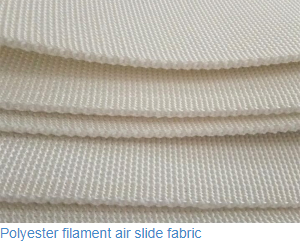

The filament polyester air slide fabric with a smooth surface and equal air permeability, strong construction, excellent for abrasion resistance, with the longest service life for the polyester material air slide fabrics.

Model:
LD-AS-02
Brand:
LD
Code:
LD-AS-02

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical data of Polyester Air Slide Belt

Type	Material	Tensile strength		Thickness	Weight	Max	Air
				(+0.8,	g/㎡	Width	Resistance
				-0.5mm)		(mm)	in 2m3/m2/min
							H2O/mm
		Warp>N/mm	Weft>N/mm
LD-AS-4	100%	360	270	4	3200	2600
	polyester						120-150
LD-AS-5	100%	360	270	5	3600	2600
	polyester						120-150
LD-AS-6	100%	360	270	6	4000	2600
	polyester						120-150
LD-AS-7	100%	360	270	7	4400	2000
	polyester						120-150
LD-AS-8	100%	360	270	8	4800	2000
	polyester						120-150

Main application of the polyester air slide belt :
Cement industries: cement plant, bulk cement truck and ship;
Mining industries: alumina, lime, coal, phosphates, etc;
Chemical plants: soda, etc;
Power plant: coal, desulfurize, etc;
Food industries: flour, etc.
