Corrugated cardboard conveyor belts are used specially for corrugated cardboard production lines.After passing through a single-side corrugating machine,corrugating medium becomes corrugated under pressure and bonds together with the outer facing to constitute a single-side corrugated cardboard,which may be multiplied into three-layer,five layer or seven-layer corrugated cardboard after gluing.The conveyor belt,which is made of several types of synthetic fiber through fine knitting,shall be installed on top of the thermal plate and the cooling section.During operation,the conveyor belt shall endure high temperature,high pressure and strong friction in to ensure cardboard could be bonded accurately and dried in due time,thus providing a safe and reliable guarantee for the smooth operation of the corrugated cardboard production line.

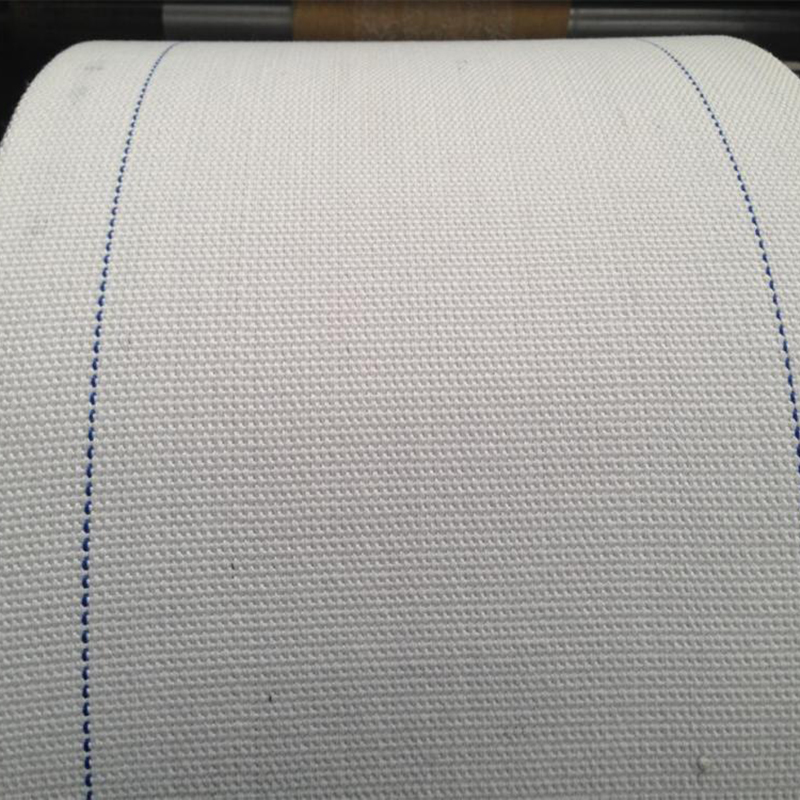

Conveyor belt used for corrugated production line LD-CW-04(Traction climbing belt)
TECHNICAL PARAMETERS
Raw material:100% synthetic fiber
Thickness:5mm±0.2mm
Width:100-2500mm
Temperature:a)Long time operation 160℃
b)Instantaneous operation 200℃
c)Melting point 254℃
Unit weight:4.3±0.2KG/㎡
Air permeability:1.82m³/㎡.min
Coefficient of Friction:≥0.38μ
Minimum Turning Radius:R20
Seam: a)Hot Jaw Lacing
b)Rubber Coated
c)Flat seam
CHARCTERISTIC
Smooth Conveyance
Small turning radius
Good Wear resistance
Package:
Wooden case or woven bag with pallet
