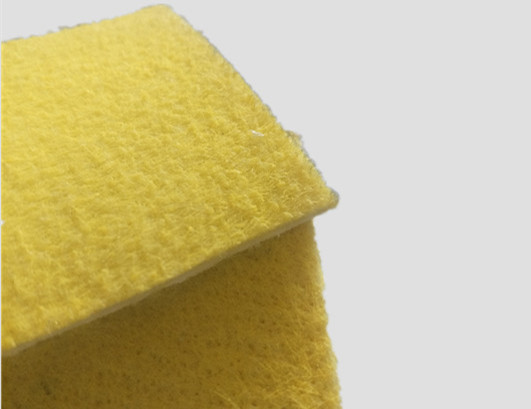

Transport Belt with coating

Take-up belt is used for the transport from the single facer up to the bridge and also as

a bridge transport belt or as a transport belt in the stacker.

Für den Hochtransport vom Single Facer, sowie als Brücken- und

Transportgurt in der Ablage.

Para el transporte desde el Single Facer hacia el Puente y también

transporte en el mismo Puente y/o Stacker

TECHNICAL PARAMETERS

Raw material:100% synthetic fiber

Thickness:5mm±0.2mm

Width:100-2500mm

Temperature:a)Long time operation 160℃

             b)Instantaneous operation 200℃

             c)Melting point 254℃

Unit weight:4.3±0.2KG/㎡

Air permeability:1.82m³/㎡.min

Coefficient of Friction:≥0.38μ

Minimum Turning Radius:R20

Seam:        a)Hot Jaw Lacing

                b)Rubber Coated

                c)Flat seam

CHARCTERISTIC

Smooth Conveyance

Small turning radius

Good Wear resistance

Package:

Wooden case or woven bag with pallet
